Multi-Agent Orchestration Patterns: Sequential vs Parallel vs Hierarchical (Real Examples)

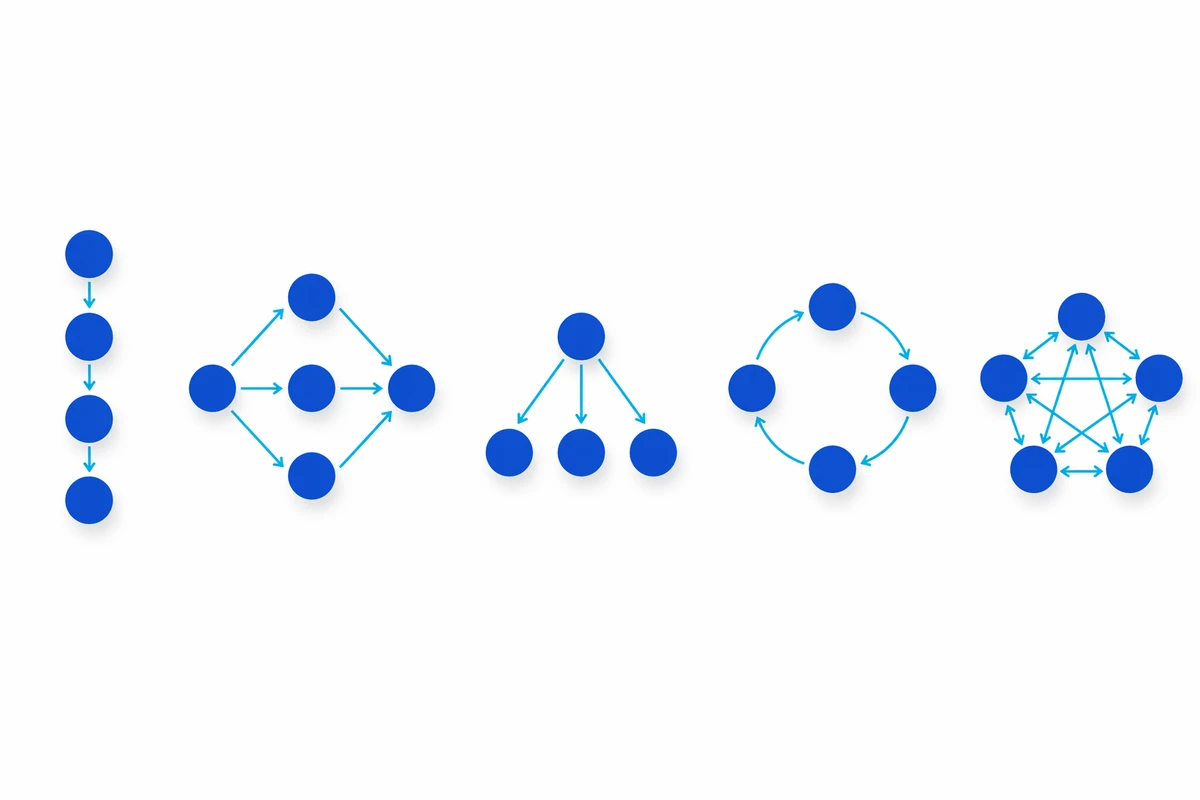

Multi-agent orchestration in 2026 follows five patterns: sequential (linear A→B→C pipelines), parallel (concurrent agents merging results), hierarchical (manager delegating to specialists), state-graph (LangGraph-style stateful nodes), and swarm (peer-to-peer collaboration). The right pattern depends on whether tasks have natural ordering, whether agents can work independently, whether one agent has authority over others, and whether the system needs explicit state management or emergent coordination.

This guide walks each of the 5 patterns with production examples, code skeletons, cost profiles, and the anti-patterns that wreck builds. Built from 30+ orchestration shipments across SaaS, healthcare, fintech, sales, DevOps, and insurance. For the underlying category definition and production stack see our what AI orchestration is companion post.

The 5 Patterns at a Glance

Pattern 1 — Sequential Pipelines

Linear pipeline where each agent runs in order, output of one becomes input of the next. Simplest pattern, lowest build complexity, easiest failure recovery. Use when the task has a natural ordering — research → draft → review → publish, intake → diagnose → recommend → close.

Real production example. Insurance claims triage at a mid-market property insurer: 4-agent pipeline where Agent 1 extracts claim data from PDF, Agent 2 validates against policy, Agent 3 generates the initial assessment, Agent 4 routes to human reviewer or auto-approves. 18-month production, 22,000 claims/month processed, 71% auto-approval rate.

from crewai import Crew, Task, Agent, Process

researcher = Agent(role="Researcher", goal="Gather all facts", backstory="...")
drafter = Agent(role="Drafter", goal="Write the response", backstory="...")
reviewer = Agent(role="Reviewer", goal="Catch errors", backstory="...")

crew = Crew(
    agents=[researcher, drafter, reviewer],
    tasks=[research_task, draft_task, review_task],
    process=Process.sequential,
)
result = crew.kickoff()

Cost profile. Build $30-50K. Monthly run $1,500-$4,000. Cheapest pattern to ship.

When to AVOID. When subtasks don't have natural ordering. When you need branching mid-pipeline. When one agent might block others for hours (pipeline halts).

Pattern 2 — Parallel Execution

Multiple agents run concurrently, results merge at the end. Best when subtasks are independent — research multiple sources simultaneously, generate multiple draft variants in parallel, query multiple internal systems at once. Reduces total wall-clock time but adds merge-logic complexity.

Real production example. Sales SDR + research + outreach at a B2B SaaS company: 4-agent parallel pipeline where one agent enriches the lead from LinkedIn, one pulls company news, one queries CRM for past interactions, one drafts an opener. Merger agent composes the final outreach. Parallel execution dropped per-lead processing time from 45 seconds to 12 seconds.

from langgraph.graph import StateGraph, END

graph = StateGraph(LeadState)
graph.add_node("linkedin", enrich_linkedin)
graph.add_node("news", fetch_news)
graph.add_node("crm", query_crm)
graph.add_node("merger", compose_outreach)

graph.add_edge("start", "linkedin")
graph.add_edge("start", "news")
graph.add_edge("start", "crm")
graph.add_edge("linkedin", "merger")
graph.add_edge("news", "merger")
graph.add_edge("crm", "merger")
graph.add_edge("merger", END)

Cost profile. Build $50-90K. Monthly run $3,000-$7,000. Higher LLM spend because multiple agents run per request.

When to AVOID. When subtasks depend on each other. When merge logic is non-trivial (race conditions multiply bugs). When cost-per-request matters more than latency.

Pattern 3 — Hierarchical Manager-Specialist

Manager agent receives the task, decides which specialist to delegate to, integrates their work, and produces the final output. Best when one agent has clear decision authority and others execute under it.

Real production example. Multi-channel customer support at a SaaS company: Manager agent classifies the ticket, then delegates to one of 5 specialists (billing, technical, account, refund, escalation). Manager re-engages if specialist confidence drops below threshold or task spans multiple specialists. Production scale: 8,000 tickets/day across 5 specialists + 1 manager.

from crewai import Crew, Agent, Process

manager = Agent(role="Support Manager", goal="Route and coordinate", ...)
billing = Agent(role="Billing Specialist", ...)
technical = Agent(role="Technical Specialist", ...)
account = Agent(role="Account Specialist", ...)

crew = Crew(
    agents=[billing, technical, account],
    process=Process.hierarchical,
    manager_agent=manager,
)
result = crew.kickoff(inputs={"ticket": ticket_text})

Cost profile. Build $60-110K. Monthly run $4,000-$9,000. For teams comparing CrewAI vs LangGraph vs AG2 frameworks for this pattern see our framework comparison. For CrewAI-specific implementation partners see CrewAI development agencies 2026.

When to AVOID. When all specialists need to collaborate on every task. When decision authority is shared. When manager-agent latency budget is tight.

Pattern 4 — State-Graph Orchestration

Explicit state machine — graph nodes represent states (intake, diagnose, gather-info, escalate, resolve, close), edges represent transitions. Best for workflows where the next step depends on intermediate state, where you need to pause and resume, or where human-in-loop checkpoints are non-trivial.

Real production example. Code-review + deploy bot at a DevOps platform: 3-agent state-graph where intake parses the PR, diagnose runs static analysis + LLM review, then state transitions to either auto-approve, request-changes, or human-review based on confidence score. Deploy state only entered after human approval gate. Production scale: 1,500 PRs/week across 14 engineering teams.

from langgraph.graph import StateGraph, END

graph = StateGraph(PRState)
graph.add_node("intake", parse_pr)
graph.add_node("diagnose", review_code)
graph.add_node("human_review", await_approval)
graph.add_node("deploy", run_deploy)

graph.add_edge("intake", "diagnose")
graph.add_conditional_edges(
    "diagnose",
    lambda s: "deploy" if s.confidence > 0.9 else "human_review",
)
graph.add_edge("human_review", "deploy")
graph.add_edge("deploy", END)

Cost profile. Build $70-130K. Monthly run $5,000-$12,000.

When to AVOID. When the workflow is purely sequential (overkill). When state is simple enough to fit in a single agent's context. When the team isn't comfortable with state-machine debugging.

Pattern 5 — Swarm Collaboration

Agents negotiate, vote, or chat to reach consensus without a fixed orchestrator. Highest build complexity, most non-deterministic behavior, also the most flexible. Best for open-ended creative or analytical tasks where the path to the answer can't be pre-specified.

Real production example. Financial advisor co-pilot at a wealth management firm: 5-agent swarm where one agent specialises in tax, one in retirement, one in estate, one in risk, one in compliance. Agents send messages to each other to build a unified recommendation when a client question spans multiple domains. Production scale: ~400 advisor sessions/day; ~30% of sessions trigger multi-agent swarm collaboration.

from autogen import GroupChat, GroupChatManager, AssistantAgent

tax = AssistantAgent("tax", ...)
retirement = AssistantAgent("retirement", ...)
estate = AssistantAgent("estate", ...)
risk = AssistantAgent("risk", ...)
compliance = AssistantAgent("compliance", ...)

groupchat = GroupChat(
    agents=[tax, retirement, estate, risk, compliance],
    messages=[],
    max_round=12,
)
manager = GroupChatManager(groupchat=groupchat)
manager.initiate_chat(message=client_question)

Cost profile. Build $90-180K. Monthly run $7,000-$15,000.

When to AVOID. When latency matters. When deterministic output is required. When budget is tight.

Decision Tree: Which Pattern for Which Use Case

Use this decision tree to pick a pattern:

• Does the task have natural ordering?
  • Yes → Sequential (CrewAI Sequential)
  • No → Can subtasks run independently?
    • Yes → Parallel (LangGraph branches)
    • No → Is there a clear decision authority?
      • Yes → Hierarchical (CrewAI Manager)
      • No → Complex state transitions?
        • Yes → State-graph (LangGraph)
        • No → Swarm (AG2 / OpenAI Swarm)

Hybrid Patterns

Real production systems often combine patterns. Common hybrids:

• Hierarchical with parallel subteams. Manager delegates to 2-3 sub-managers, each runs a parallel team. Used in large customer-support orchestrations where domain leads run parallel specialist teams.
• Sequential with state-graph branches. Linear pipeline that drops into a state-graph at one node (typically the escalation or human-review step). Most common in compliance-heavy domains.
• Swarm with hierarchical fallback. Swarm runs for the first N rounds; if no consensus reached, falls back to manager-led resolution. Common in analytical or research-heavy tasks.

Hybrid patterns cost more to build (typically +25-40% over base pattern) but handle more edge cases cleanly. Most $100K+ orchestration engagements end up hybrid.

Production Considerations

For deeper read on production failure modes that hit every pattern (context bloat, tool retry storms, hallucinated tool calls, memory drift, eval gaps), see our production failures guide. For the underlying cost breakdown including framework impact see our orchestration cost bands companion post.

How Groovy Web Picks Patterns

Default for support / triage / data-extraction tasks: sequential or hierarchical. Default for research-heavy or content-generation tasks: parallel. Default for compliance-heavy or audit-required tasks: state-graph. Default for advisory or analytical tasks: hybrid (swarm with hierarchical fallback). We rarely ship pure swarm — non-determinism is hard to support in production. Full service breakdown lives on our AI orchestration development service page. For broader agent-development scope see AI agent development.

Frequently Asked Questions

What is the difference between sequential and parallel orchestration?

Sequential runs agents one after another — output of agent A becomes input of agent B. Parallel runs multiple agents concurrently, then merges results at the end. Sequential is simpler to build and debug; parallel is faster but adds merge-logic complexity. Pick sequential when subtasks have natural ordering, parallel when they're independent.

When should I use LangGraph vs CrewAI for orchestration?

Use CrewAI for sequential, hierarchical, or simple parallel patterns where role-based delegation fits cleanly. Use LangGraph for state-graph patterns with explicit state transitions, complex branching, or pause-and-resume requirements. Both can express most patterns; CrewAI is faster to ship for standard patterns, LangGraph wins on state-machine fidelity.

Can I mix patterns in one system?

Yes — hybrid patterns are common in $100K+ production builds. Typical hybrids: hierarchical with parallel subteams, sequential with state-graph branches, swarm with hierarchical fallback. Hybrids add 25-40% to build cost but handle edge cases cleanly.

Which pattern is most common in production?

Sequential and hierarchical dominate in 2026 — together about 70% of production orchestrations. State-graph and parallel are 10-15% each. Pure swarm is rare — most "swarm" candidates ship as hierarchical because predictability is worth the rigidity trade-off.

What pattern do customer-support agents typically use?

Hierarchical. Manager agent classifies the ticket, then delegates to one of N specialists (billing, technical, account, refund, escalation). Manager re-engages if specialist confidence drops or task spans multiple domains. Handles 60-85% of tickets autonomously in 2026 production systems.

How do I choose between hierarchical and swarm for complex tasks?

Hierarchical when one agent has clear decision authority and others execute under it — predictable behavior, easier debugging, lower cost. Swarm when no single agent has authority and consensus must emerge through negotiation — more flexible but non-deterministic and expensive. In practice, most "swarm" candidates ship as hierarchical.
